Integrated
VFD motor
Solutions.
Compact, High-Efficiency Drive Systems for Heavy-Duty Applications.
Drivewerx® delivers integrated drive motor systems that combine electric motor, variable frequency drive and, where required, mechanical transmission into one engineered unit. By integrating control and power electronics directly with the motor, external drive cabinets, long motor cables and intermediate transmission components can be eliminated.
The result is a compact and robust drive architecture with improved electrical efficiency, reduced mechanical complexity and lower installation footprint. Integrated solutions also enhance system reliability by minimizing alignment issues, transmission losses and component interfaces.
Our portfolio includes direct-drive Permanent Magnet Synchronous Motors (PMSM) with integrated VFD, asynchronous motors with integrated drives, integrated PMSM systems with planetary gearbox for high-load applications, and PM motorized pulley solutions for bulk material handling.
Available in voltage ranges from 380V up to 11kV and power ratings up to 3 MW, Drivewerx® integrated drive systems are engineered for demanding industrial environments including mining, marine propulsion and auxiliaries, oil & gas, bulk material handling and heavy process industries.
.
I N T E G R A T E D D R I V E S O L U T I O N S
Technical data.
Power up to
3000 kW
Power output from 45 kW to 3000 kW
Cooling
Air & Liquid
Cooling designs in Air & Liquid cooling
Voltage up to
11 kV
Wide voltage range from Low voltage 380V up to Medium voltage 11,000V
Frame size up to
Custom
Frame size customized to requirements
Torque up to
300,000 Nm
Torque output from 1000 Nm to 300,000 Nm
IP Ratings up to
IP68
Ingress Protetcion from IP23 to IP68
Integrated architecture
for performance and reliability.
Drivewerx® integrated drive systems are designed to simplify heavy-duty drive trains by combining motor, power electronics and, where required, mechanical transmission into a single coordinated unit. This integrated architecture reduces electrical losses, minimizes mechanical interfaces and improves overall system stability.
By eliminating external drive cabinets, long motor cabling and intermediate transmission components, installation complexity is reduced while protection, monitoring and speed control functions are directly embedded within the drive system. The result is a compact, intelligent and highly reliable solution engineered for demanding industrial applications.

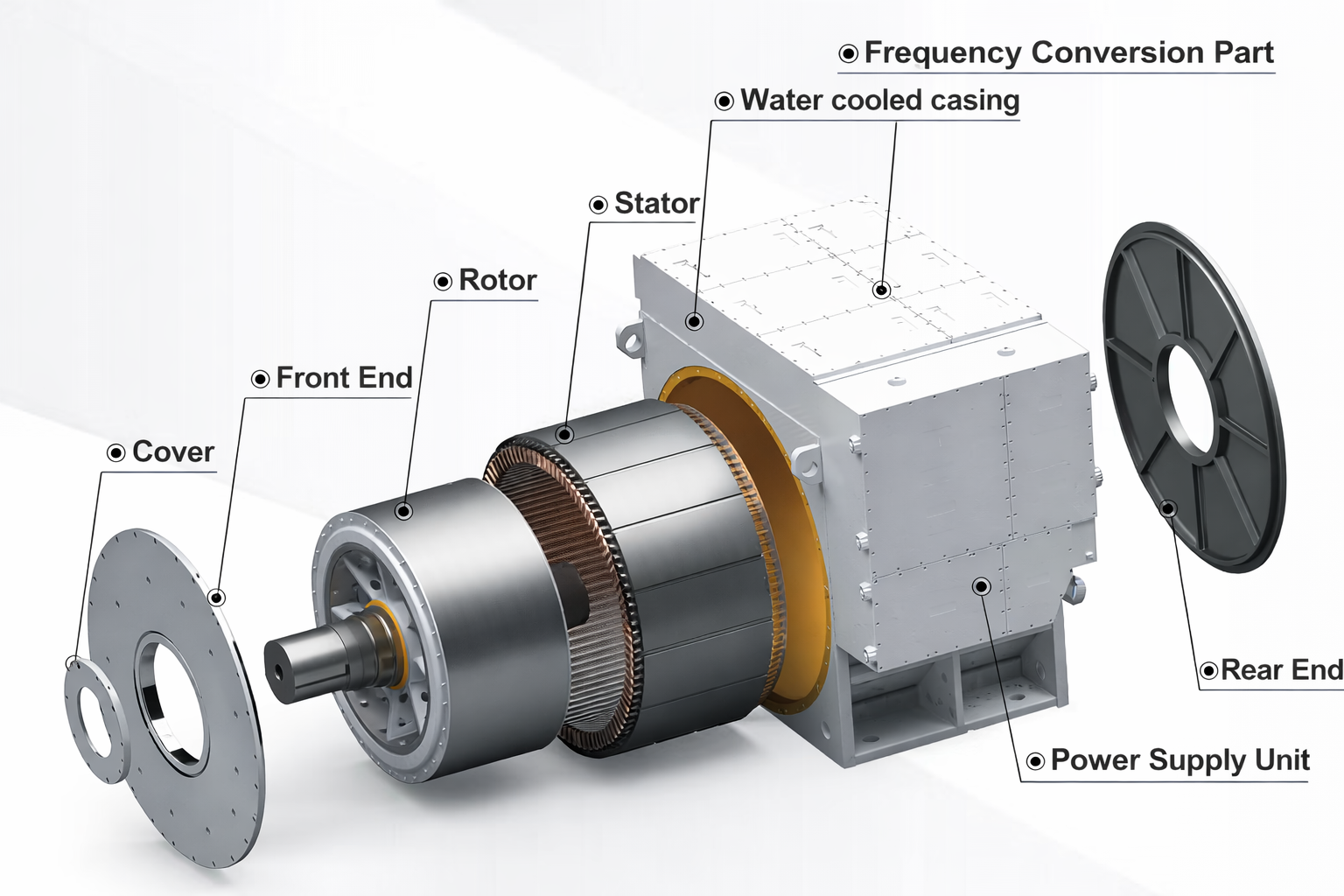

S T R U C T U R A L S E C T I O N A L O V E R V I E W

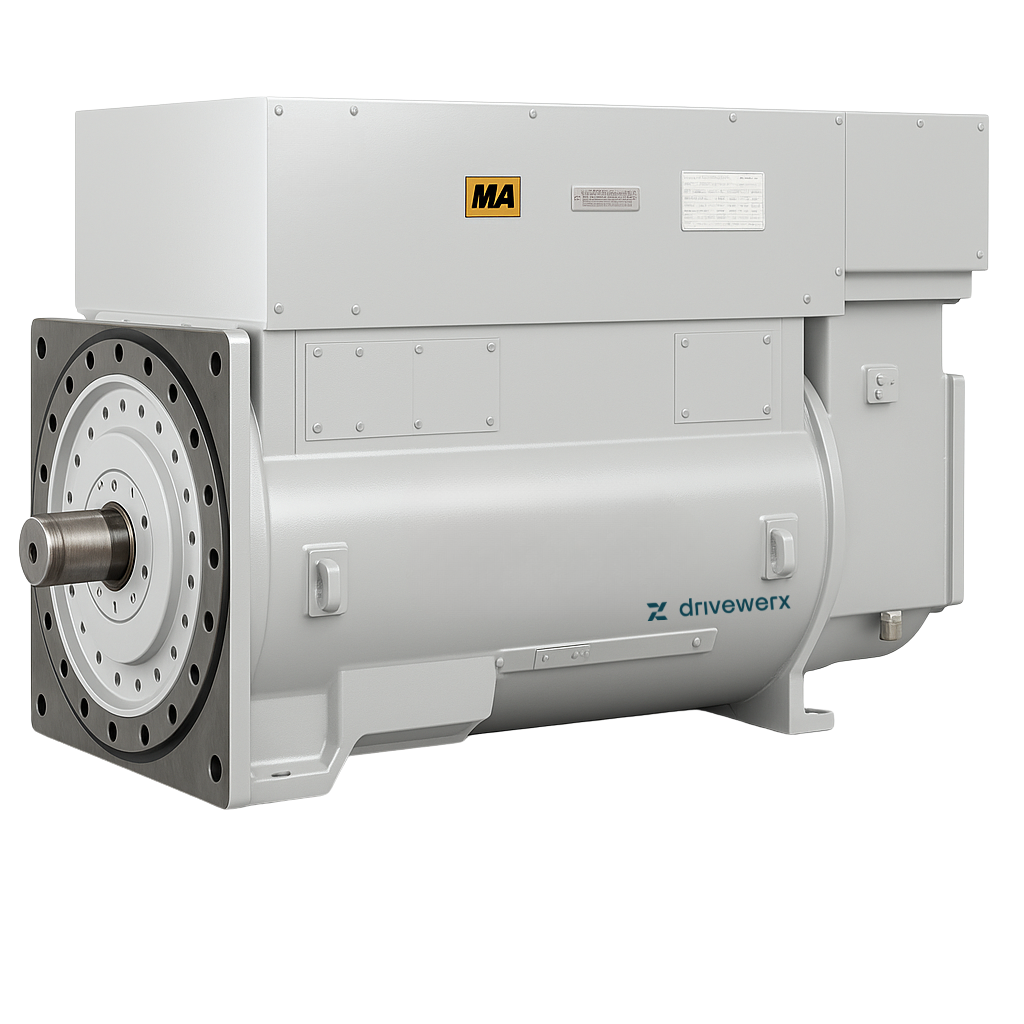

PMSM Integrated
VFD Direct Drive.
High-Torque, Gearless Drive Architecture for Heavy-Duty Applications.
Drivewerx® PMSM Integrated VFD systems combine a low-voltage permanent magnet synchronous motor with a coordinated variable frequency drive in a single integrated unit. Designed for direct-drive configurations, this architecture eliminates gearboxes and intermediate transmission components, simplifying the mechanical drive train.
Permanent magnet synchronous technology enables high torque at low rotational speeds with precise and stable speed control across the full operating range. The integrated drive platform provides controlled acceleration and deceleration, embedded protection functions and continuous speed regulation tailored to application requirements.
This solution is selected where direct-drive configuration, compact installation and controlled torque delivery are key design considerations. PMSM and asynchronous integrated solutions are offered in parallel, allowing selection based on system architecture, operating profile and project specifications.
Key Technical Characteristics
Integrated Low- and Medium voltage VFD architecture
Direct drive architecture without gearbox
High starting torque with controlled inrush current at low speeds
Continuous speed regulation from zero to rated speed
Integrated monitoring and protection functions
Water or Air-cooled configurations depending on application
Designed for heavy-duty S1 continuous operation
Typical Applications
Belt conveyor drives
Armored face conveyors (AFC)
High-load bulk material handling systems
Marine propulsion and thruster systems
Heavy-duty pumping systems

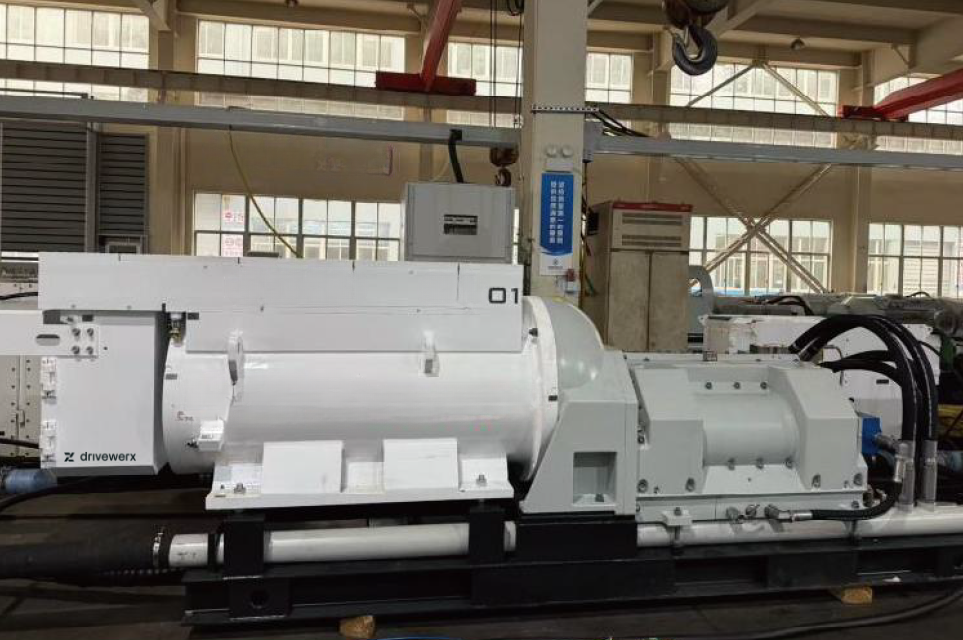

Asynchronous Motor
with Integrated VFD.
Compact Low-Voltage Integrated Drive for Industrial Applications.
Drivewerx® low-voltage asynchronous motors with integrated drives combine a robust squirrel cage induction motor with an integrated variable frequency drive in a compact, unified configuration. Designed for 400V to 690V industrial and maritime networks, this solution simplifies drive architecture while maintaining the mechanical reliability of conventional induction motor systems.
By integrating the VFD directly with the motor, external drive cabinets and extended motor cable runs can be minimized. This reduces installation space, lowers electromagnetic interference risk and simplifies commissioning.
The induction motor platform offers stable torque characteristics, high mechanical strength and reliable operation under continuous-duty conditions. Smooth soft-start and controlled acceleration reduce mechanical stress on connected equipment, extending overall system service life.
Key Technical Characteristics
Low voltage integrated VFD and squirrel cage induction motor
Smooth soft start and controlled acceleration
Designed for standard European industrial and maritime supply networks
Integrated protection functions including overvoltage, undervoltage, overload and thermal monitoring
Reduced installation footprint and simplified wiring
Suitable for S1 continuous-duty operation
Typical Applications
Belt conveyors and material transport systems
Pumping and fluid handling systems
Marine propulsion and thruster systems
Winches and auxiliary drives
Process equipment in Oil & gas and heavy industrial machinery

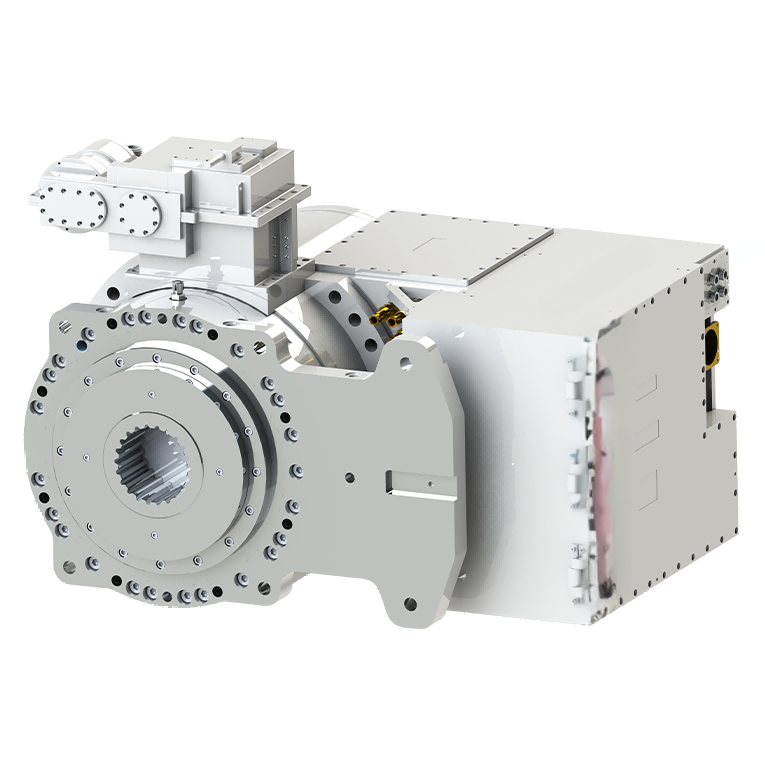

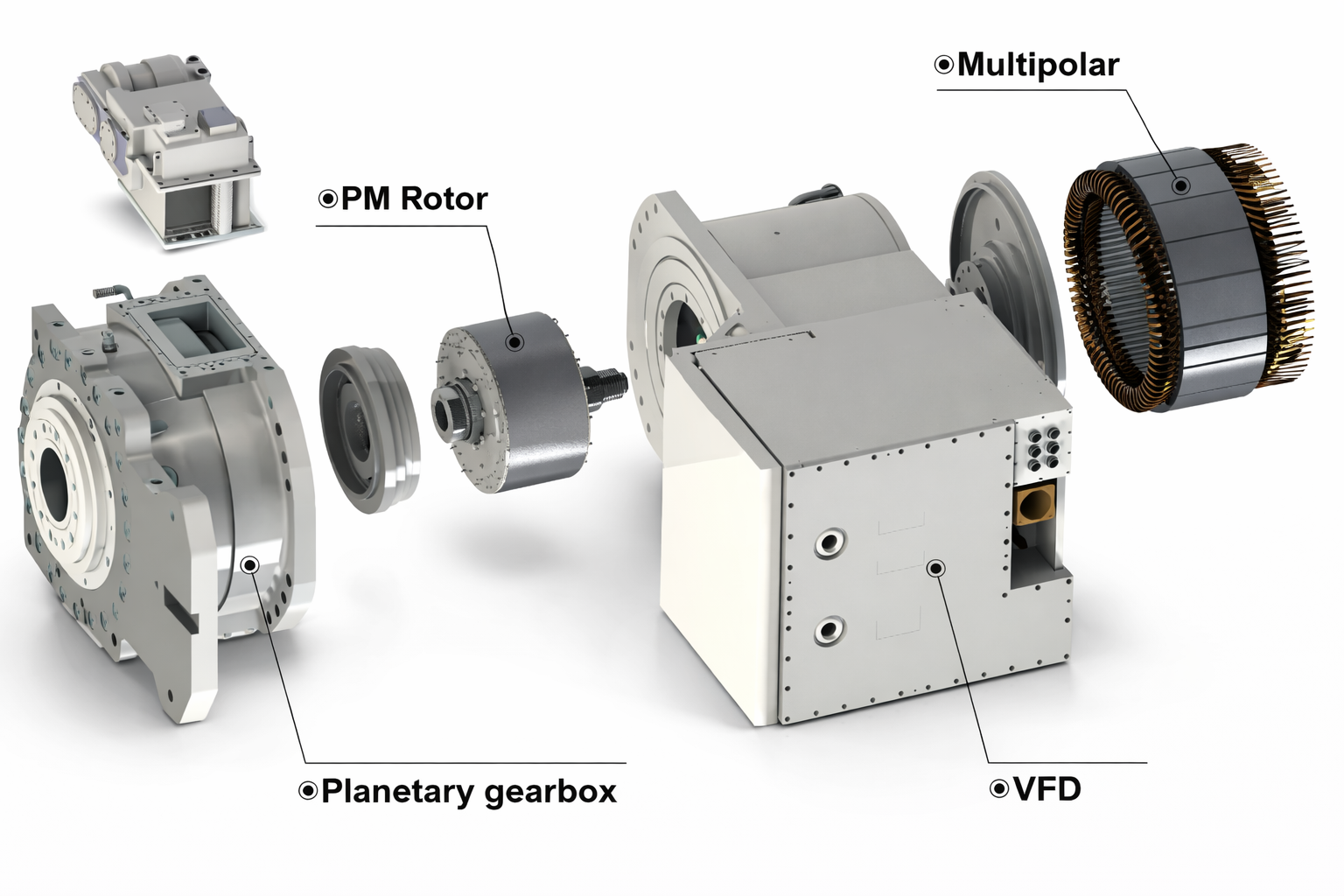

PMSM with
Planetary Gearbox.
Integrated Low-Voltage Drive with High-Torque Geared Output.
Drivewerx® PMSM systems with integrated planetary gearbox combine a low-voltage permanent magnet synchronous motor, coordinated variable frequency drive and compact planetary transmission into a single engineered unit. This configuration is selected where high output torque is required within limited installation space or where existing mechanical interfaces dictate a geared solution.
By integrating motor, drive and gearbox into one coordinated assembly, alignment complexity is reduced and mechanical interfaces are minimized compared to conventional motor–gearbox–VFD layouts. The planetary gearbox provides high torque density within a compact footprint while maintaining stable torque delivery and controlled acceleration through the integrated drive platform.
This architecture is particularly suited for heavy-load conveying systems and mechanically demanding drive points where smooth starting behavior, controlled load sharing and compact drive sections are required.
Key Technical Characteristics
Low-voltage integrated VFD and PMSM
Compact planetary gearbox integration
High output torque within reduced installation length
Smooth soft-start and controlled load application
Integrated monitoring and protection functions
Water or Air-cooled configurations depending on application
Designed for heavy-duty S1 continuous operation
Typical Applications
High load belt conveyors
Armored face conveyors (AFC)
High-load bulk material handling systems
Heavy-duty transport systems

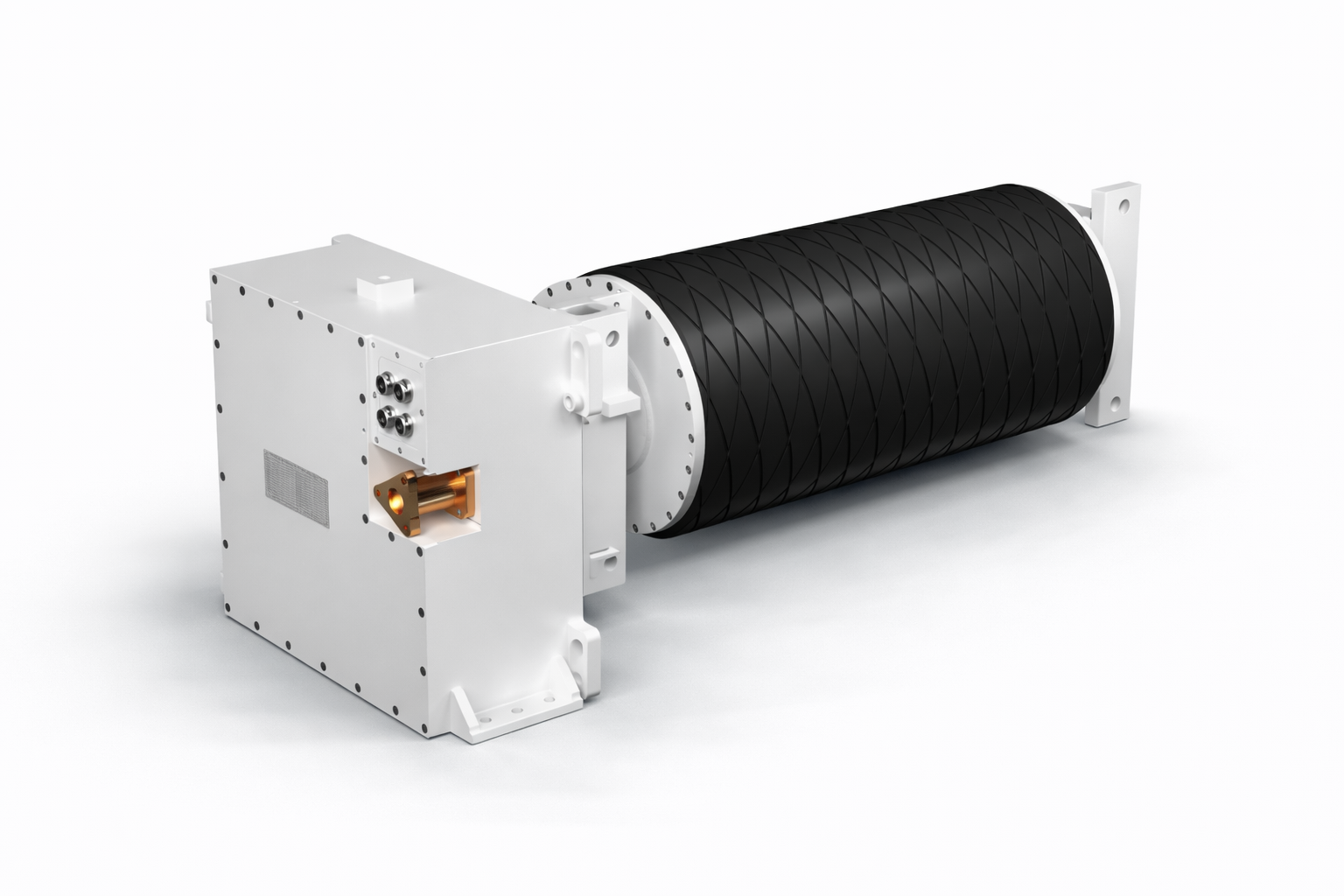

Permanent Magnet Motorized Pulley.
Fully Integrated Drive Solution for Conveyor Systems.

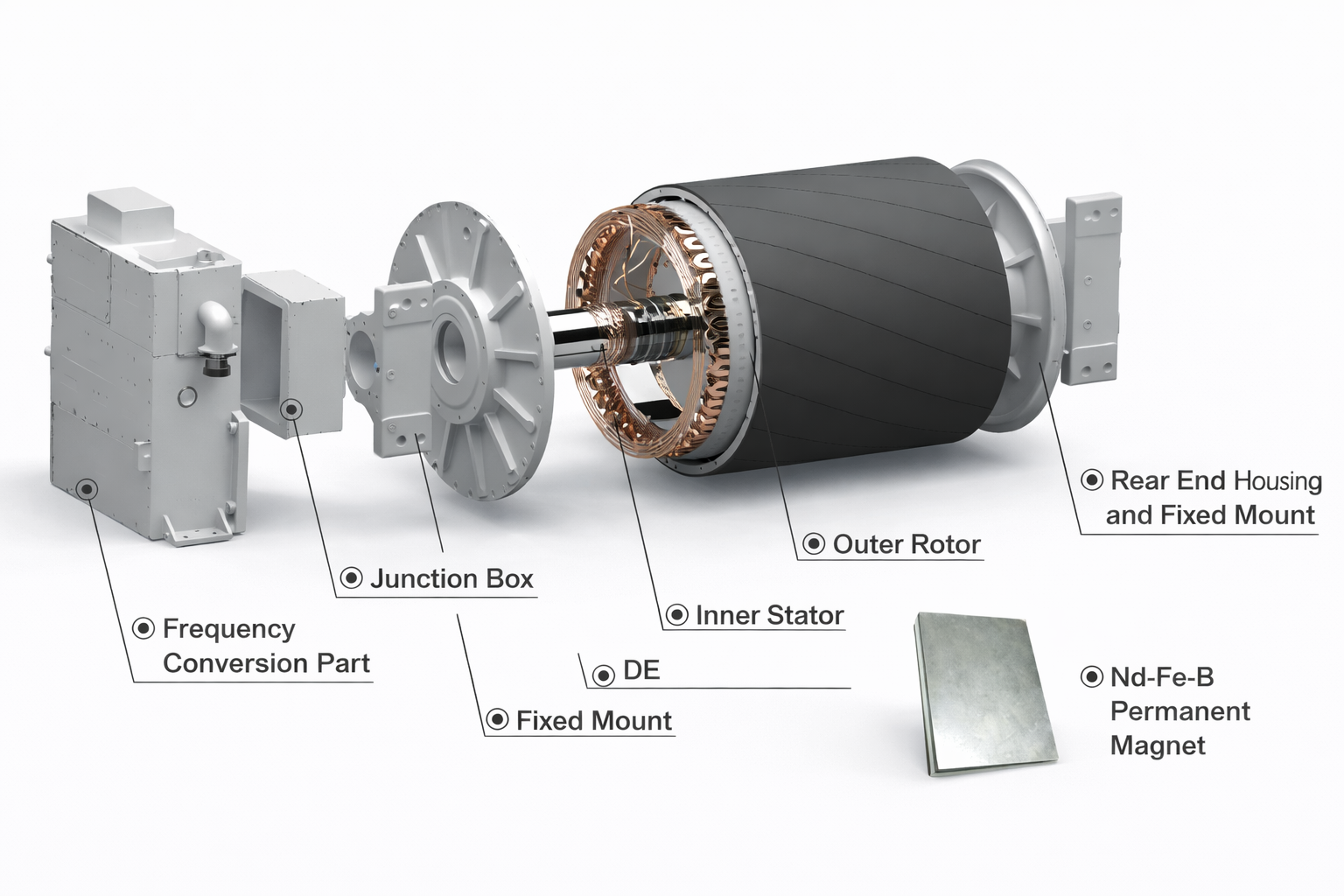

Drivewerx® PM Motorized Pulley systems integrate a permanent magnet motor, variable frequency drive and drive drum into a single sealed unit. By placing the motor directly inside the pulley, external gearboxes, couplings and exposed transmission components are eliminated, resulting in a compact and mechanically simplified conveyor drive.
The integrated configuration improves overall transmission efficiency and reduces mechanical losses associated with conventional drive arrangements. The enclosed design protects critical components against dust, moisture and harsh environmental conditions, making it suitable for demanding bulk material handling applications.
With integrated speed control and protection functions, the system enables smooth starting, controlled acceleration and stable belt operation while minimizing maintenance requirements.
Key Technical Characteristics
Permanent magnet motor and VFD integrated within drive drum
Integrated VFD control platform
Enclosed and protected drive architecture
High mechanical transmission efficiency
Reduced external components and simplified installation
Designed for continuous conveyor operation
Typical Applications
Mining transport systems
Port and terminal operations
High-load bulk material handling systems
Industrial material processing lines
